gitdiagram
Free, simple, fast interactive diagrams for any GitHub repository

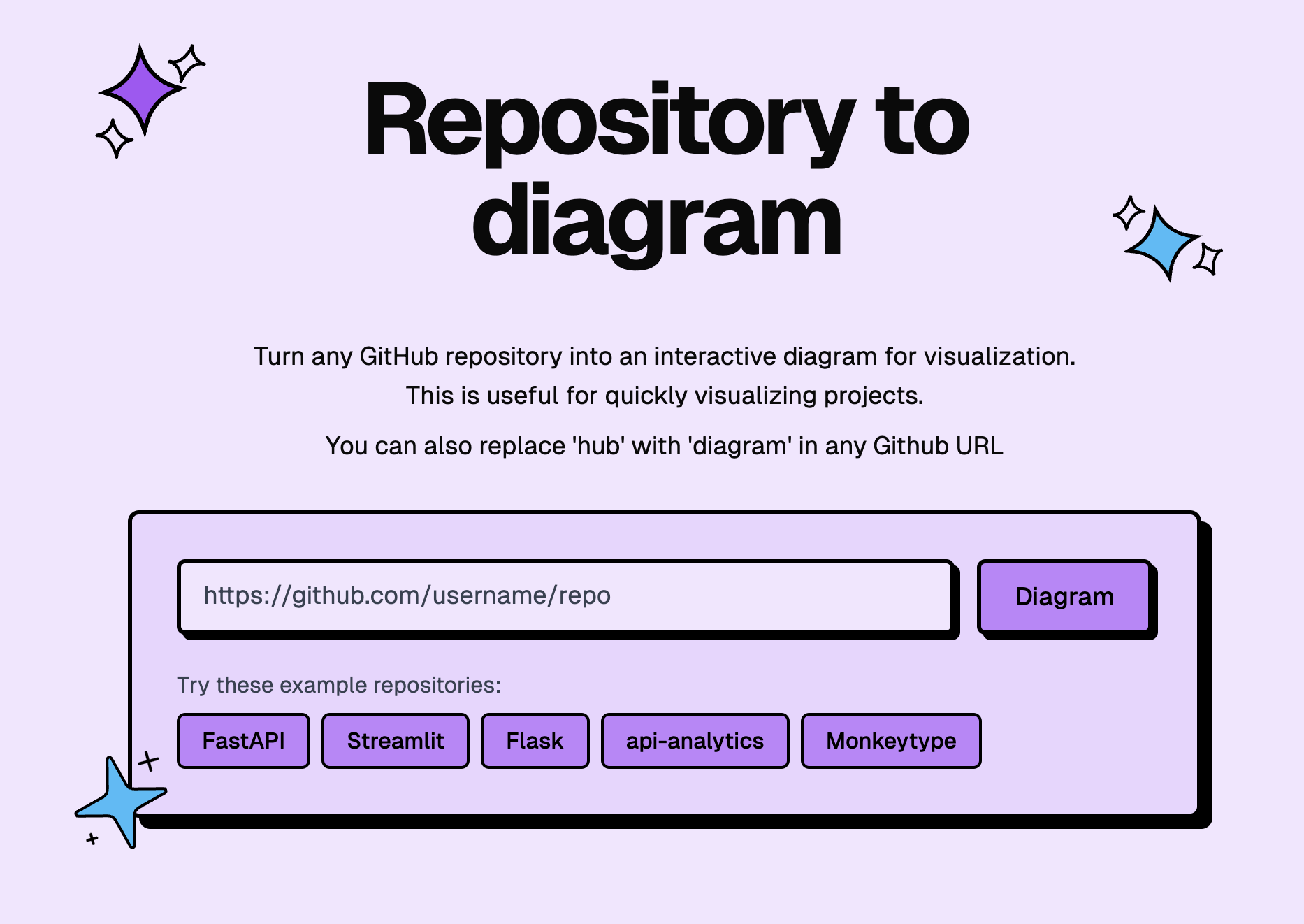

Generate interactive diagrams from any GitHub repository to visualize its structure and components.
From the README
git clone https://github.com/ahmedkhaleel2004/gitdiagram.git cd gitdiagram bun install
- Architecture-first diagrams: converts a repository tree and README into a system-level graph instead of merely drawing folders.
- Interactive source links: click a component to open its real file or directory on GitHub.
- Streaming generation: see the explanation arrive while the graph is planned.
- Private repositories: provide a GitHub token locally in the browser; private artifacts use a separate protected storage namespace.
- Export: copy Mermaid source or download the rendered diagram as PNG.
- Provider choice: OpenAI by default, with OpenRouter available for self-hosted deployments.
Excerpts from the project README on GitHub. Copyright and licensing remain with the respective authors.
Claim its page: indexed whatever its rank, translated into six languages, and enriched with what you write yourself.
Get an email alert on its next release or when it starts trending — never miss the moment.
Free · no card · unsubscribe anytimeFree, simple, fast interactive diagrams for any GitHub repository
gitdiagram has 15.8k stars on GitHub. It has been forked 1.2k times. gitdiagram is written mainly in TypeScript. It has been in active development since 2024. gitdiagram is available under the MIT license. Its main topics are ai, code, github, system-design.
What is gitdiagram?
Free, simple, fast interactive diagrams for any GitHub repository
Is gitdiagram open source?
gitdiagram is an open-source project. It is released under the MIT license.
Is gitdiagram free?
Yes. gitdiagram is free and open source — you can use, modify and self-host it.
What license does gitdiagram use?
gitdiagram is available under the MIT license.
What language is gitdiagram written in?
gitdiagram is written mainly in TypeScript.
